Ball Lock Bolts, 28 mm
T28-46450
Disponible y listo para envío
Precio regular
$ 1,296.48 MXN Precio regular Agotado Precio unitario /Model
Translation missing: es.products.product.select_quantity
Ball Lock Bolts, 28 mm
Ball Lock Bolts, 28 mm
Precio regular
$ 1,296.48 MXN Precio regular Agotado Precio unitario /
Sobre El Producto
Specifications
-
BuildPro
-
Peso
Descripción
Todos los pernos vienen en versiones cortas y largas.

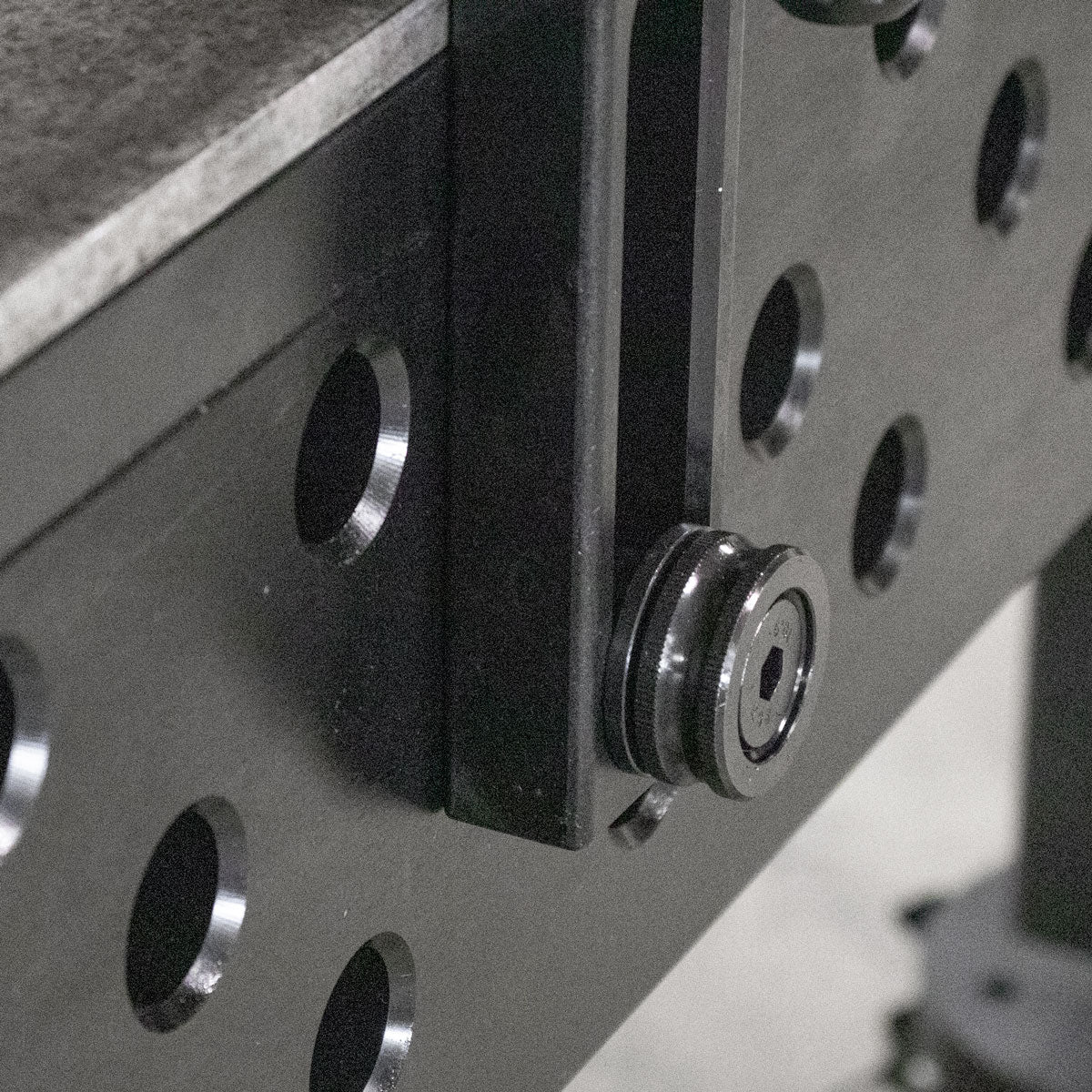

Los pernos cortos están diseñados para conectar dos componentes Alpha 28 entre sí, como una mesa con un tope o un tope con una escuadra.
Los pernos largos están diseñados para conectar tres componentes Alpha 28 entre sí.
| Part No. | Type | Length (mm) | Diameter (mm) | Weight (kg) | Notes | HEX Key Size |
|---|---|---|---|---|---|---|

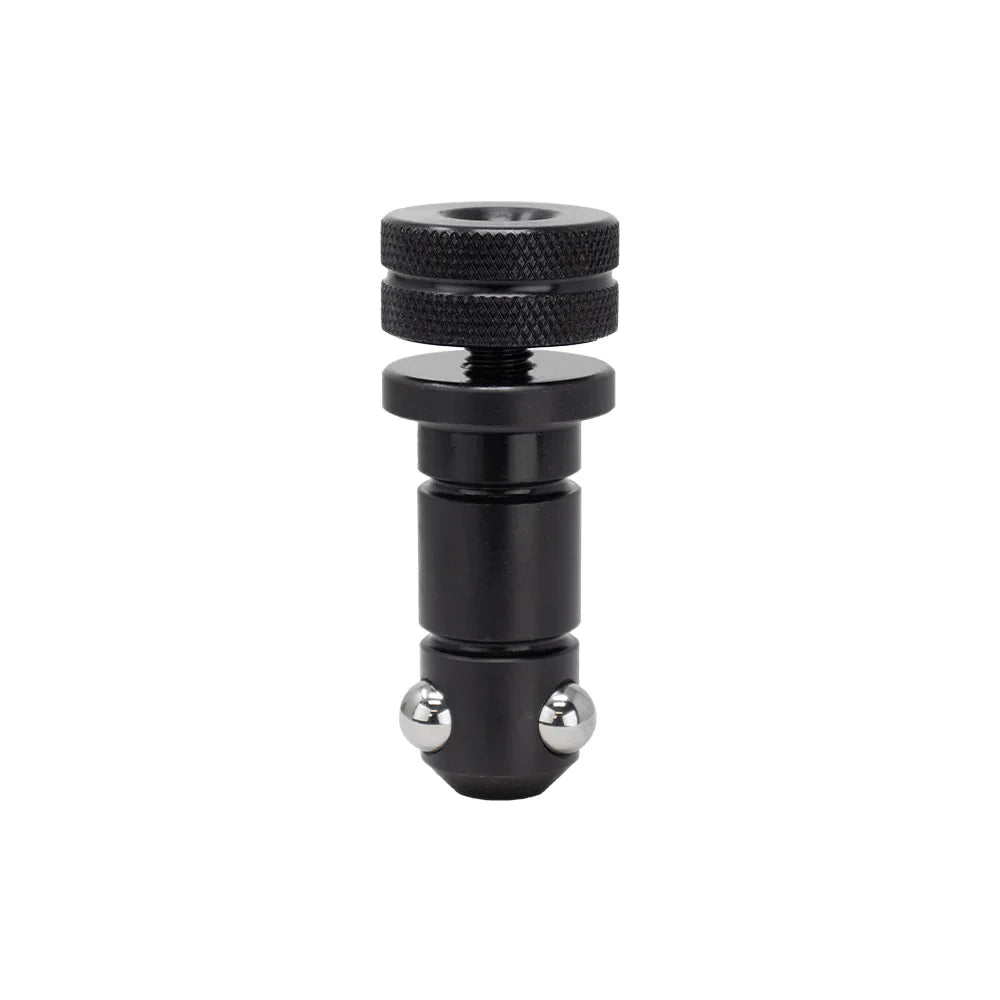

| T28-46450 | Fast Clamping Bolt, Short | 95 | 28 | 0.5 | Standard bolt for use when combining 2 components | M6 |

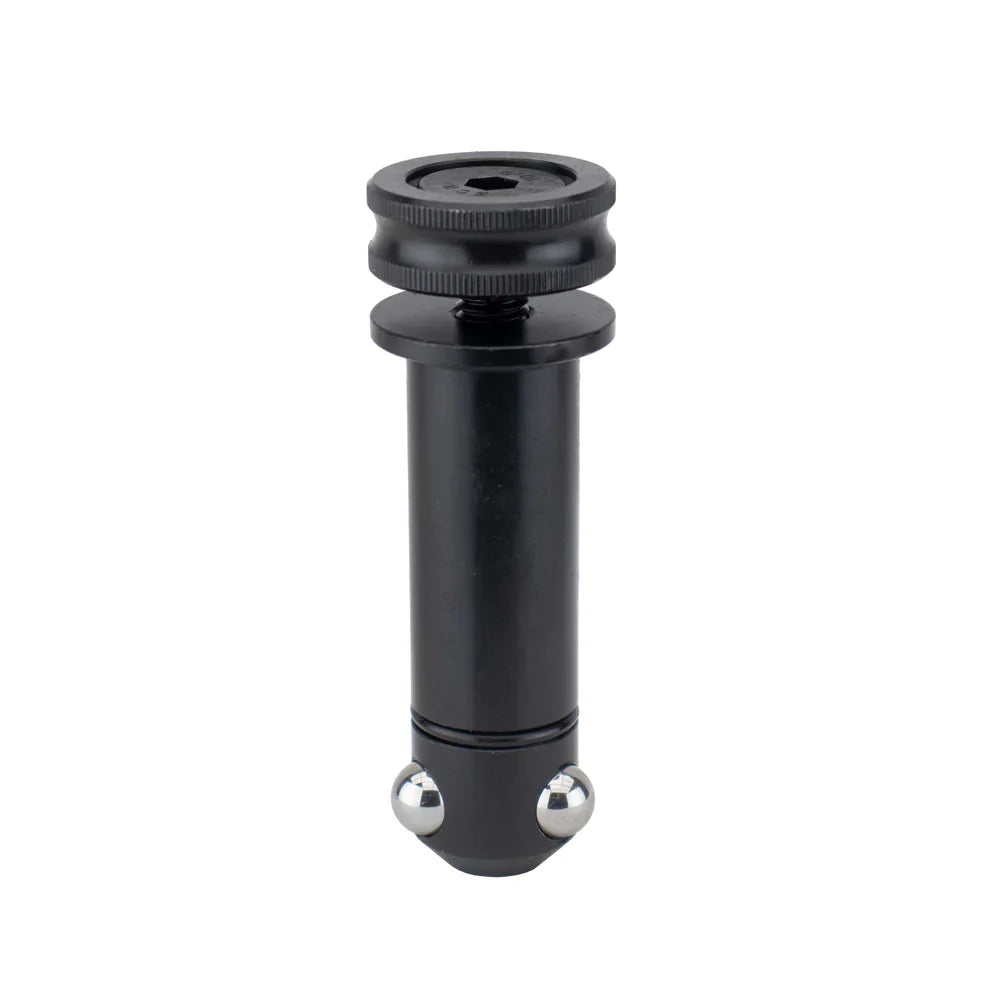

| T28-46475 | Fast Clamping Bolt, Long | 120 | 28 | 0.7 | Standard bolt for use when combining 3 components | M6 |

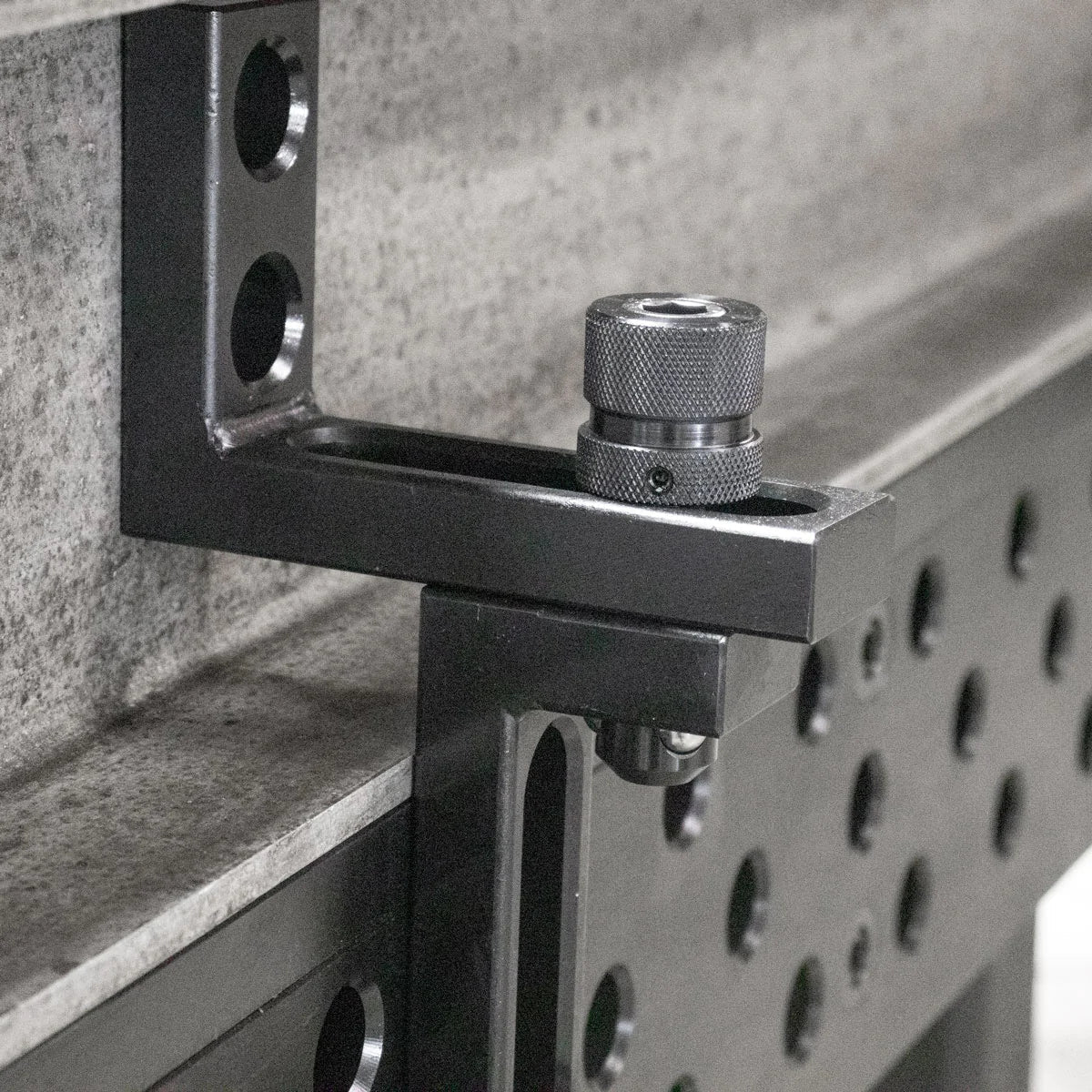

| T28-47455 | Universal bolt w/ collar, Short | 106 | 28 | 0.6 | 45 ~ 53 mm clamping zone, 2 components | M8 |

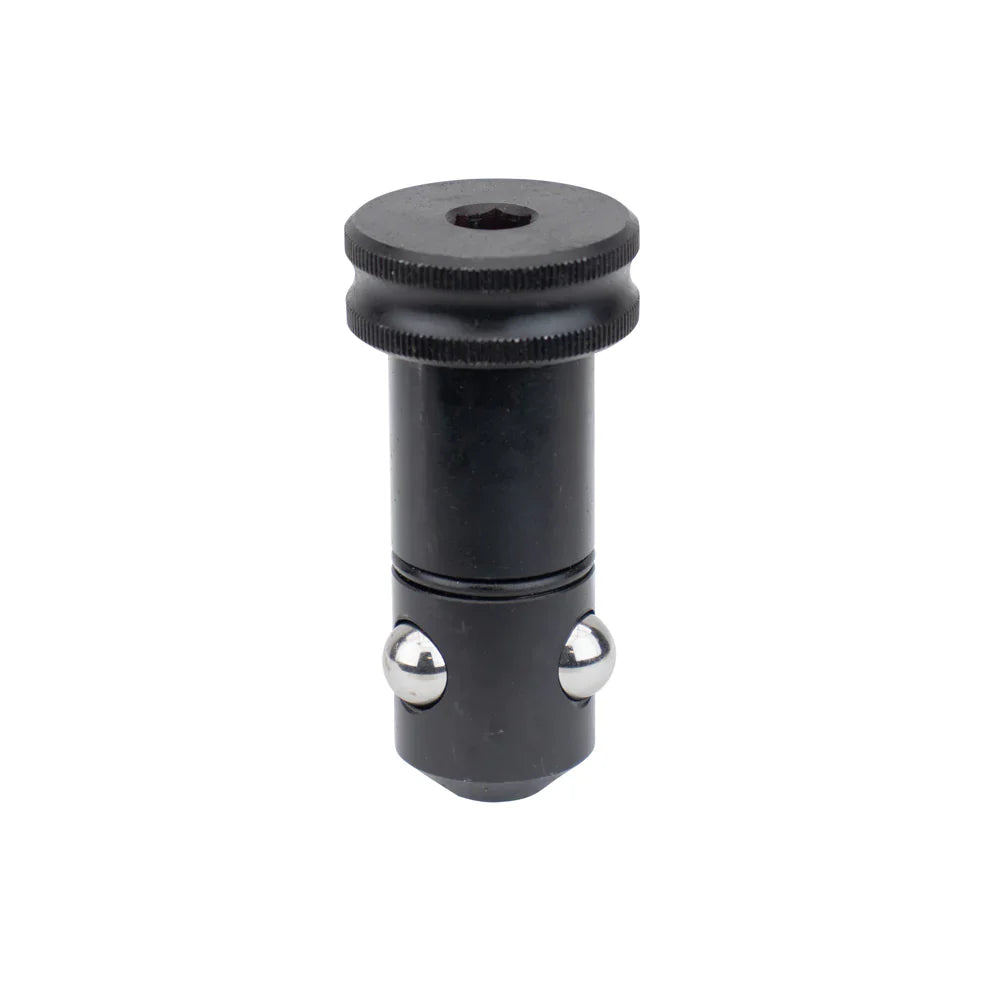

| T28-47550 | Universal bolt, Short | 84 | 28 | 0.4 | 42 ~ 57 mm clamping range. For clamping 2 components | M14 |

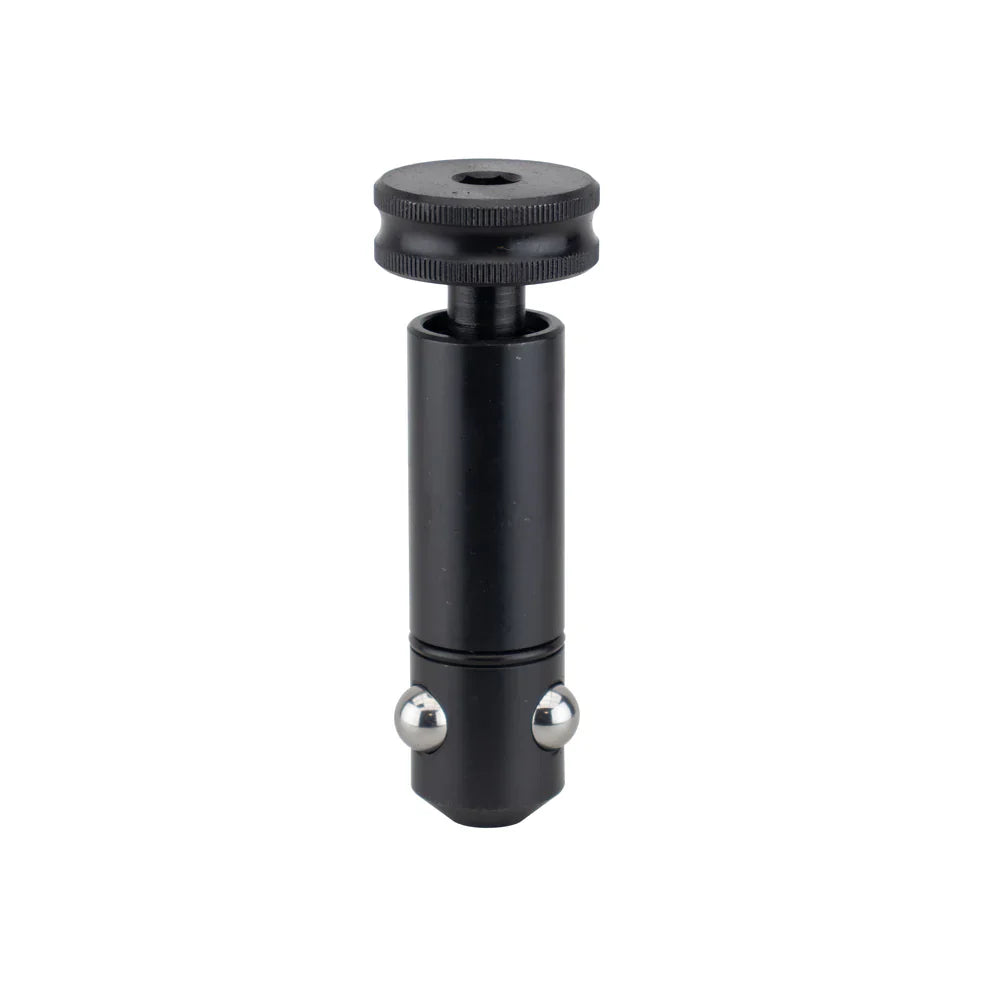

| T28-47575 | Universal bolt, Long | 108 | 28 | 0.6 | 47 ~ 82 mm clamping range. For clamping 3 components | M14 |

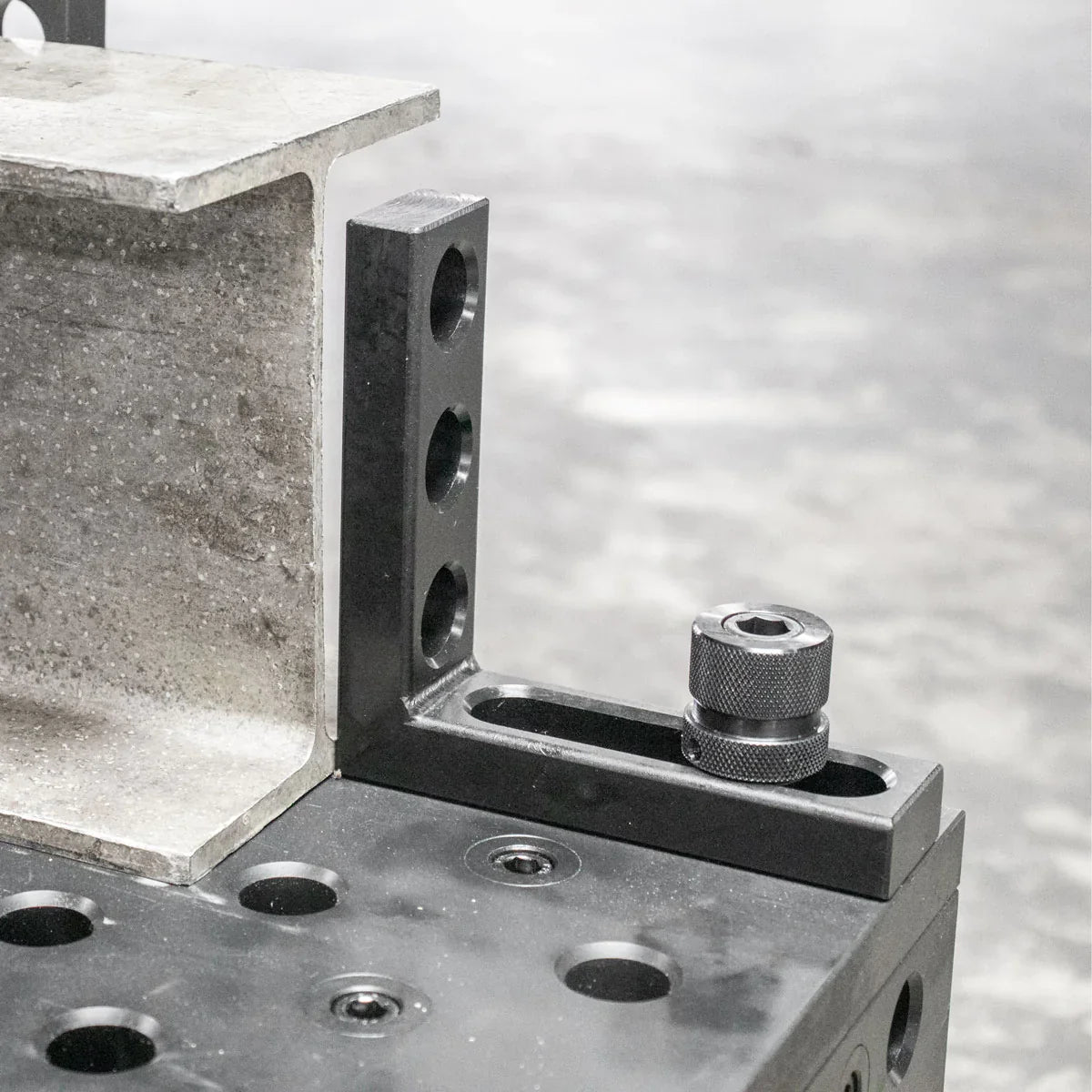

| T28-46350 | Flat Clamping Bolt, Short | 74 | 28 | 0.4 | Low profile bolt for use in oblong holes such as for sliding base plate | M6 |

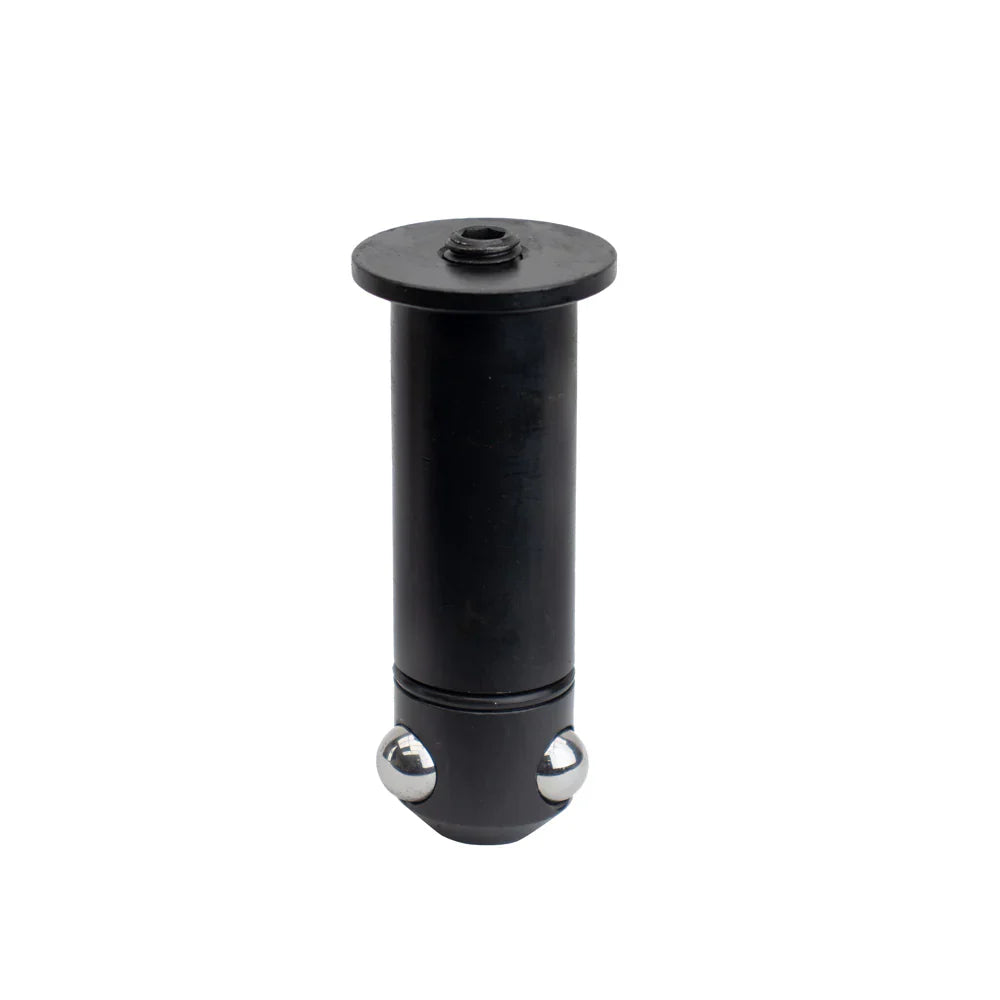

| T28-46375 | Fast Clamping Bolt, Flat Long | 99 | 28 | 0.5 | For clamping 3 components | M6 |

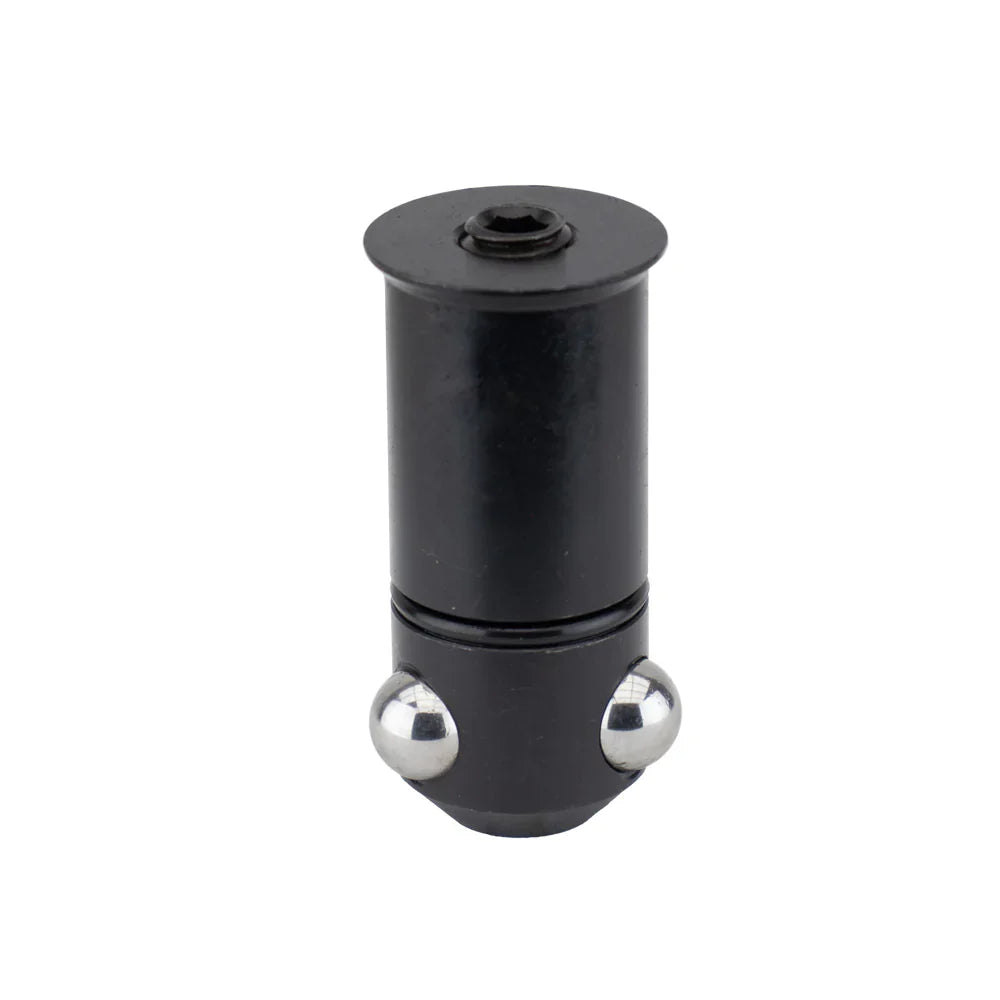

| T28-46650 | Flush Mounted Bolt, Short | 67 | 28 | 0.3 | Flush Mount head not suitable for placement in oblong slots | M6 |

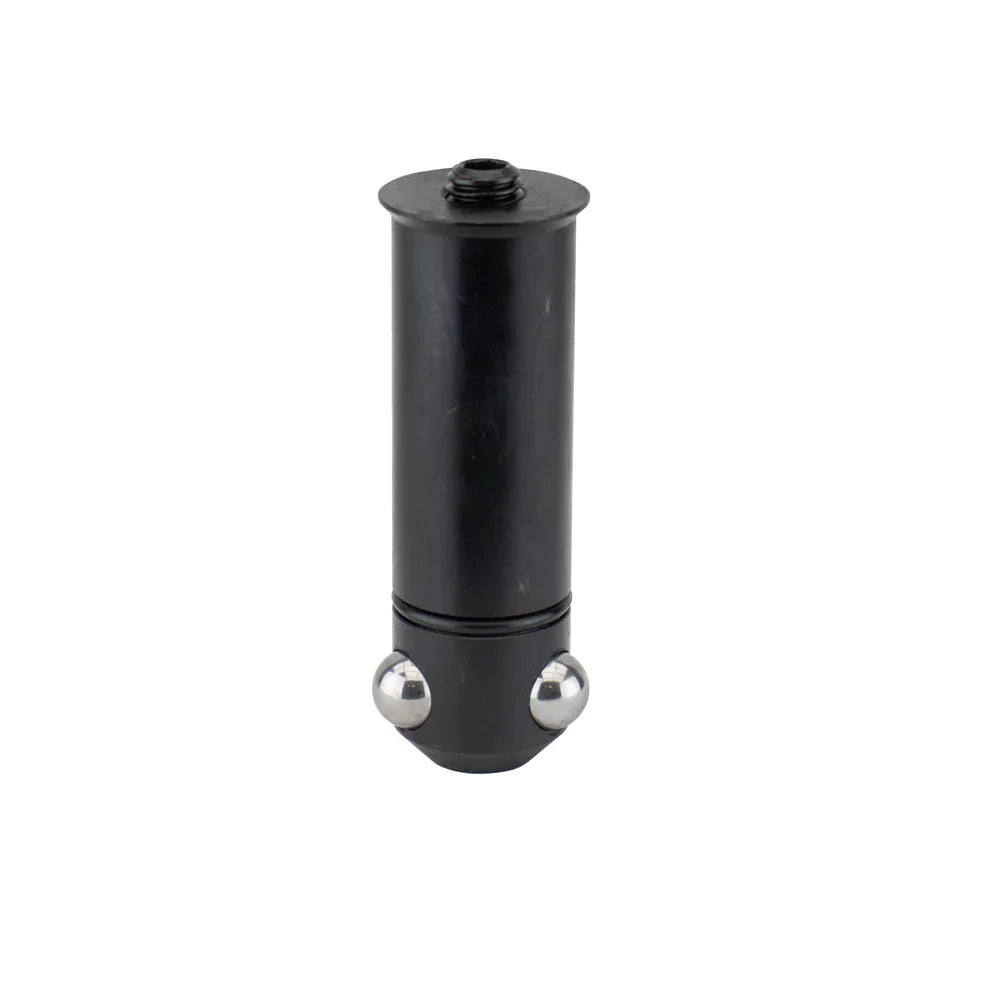

| T28-46675 | Flush Mount Bolt, Long | 91 | 28 | 0.4 | Flush Mount head not suitable for placement in oblong slots | M6 |
